Benzoxazine
It is a new thermosetting resin that reacts with various resins.
Benzoxazine is a thermosetting monomer, and cured products with high heat resistance and good electrical properties can be obtained by itself or in combination with other resins. In addition, since no by-products are generated during curing, it is difficult for voids to occur, and cured products with good dimensional stability and adhesiveness can be obtained.
JBZseries

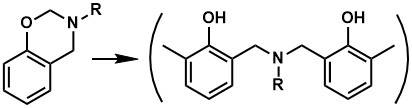

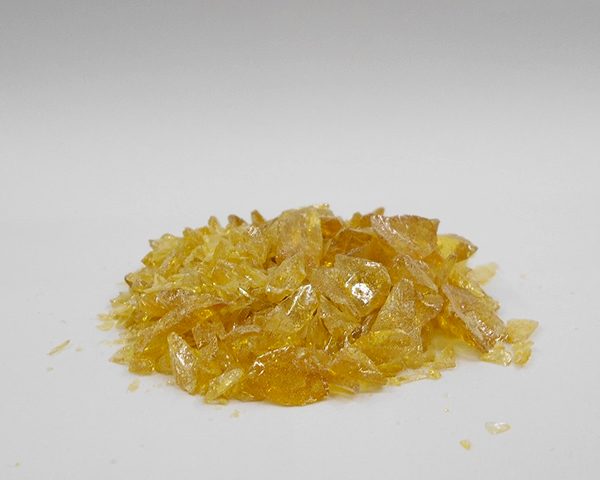

Benzoxazine “JBZ series” is a solid thermosetting resin that applies our specialty resin synthesis technology. A cured product that is tough and has excellent heat resistance can be obtained by thermally ring-opening polymerization of the oxazine ring in the molecule. It can be copolymerized with various resins and is ideal as a curing material for epoxy resins. JFE Chemical accepts customization of various physical properties and functionality according to customer’s wishes.
(JBZseries)Polybenzoxazine
| series | precursor | After curing | |||
|---|---|---|---|---|---|
| S.P. （℃） |
viscosity/150℃ （mPa･s） |
Tg/DSC （℃） |
Td5%/TGA (℃） |
CTE/TMA (ppm/℃) |
|
| JBZ-BA100N | 60～90 | 100～500 | 155 | 334 | 60～80 |
| JBZ-FA100N | 60～90 | 100～500 | 147 | 354 | 60～80 |
| JBZ-DP100N | 60～90 | 100～500 | 179 | 385 | 50～70 |
| JBZ-OP100N | 60～90 | 200～700 | 170 | 388 | 50～70 |
| JBZ-OP100D | 60～90 | 200～700 | 166 | 392 | 50～70 |
| JBZ-OP100I | 60～90 | 200～700 | 200 | 409 | 50～70 |
